Orders for this product usually ship in 7-14 business days.

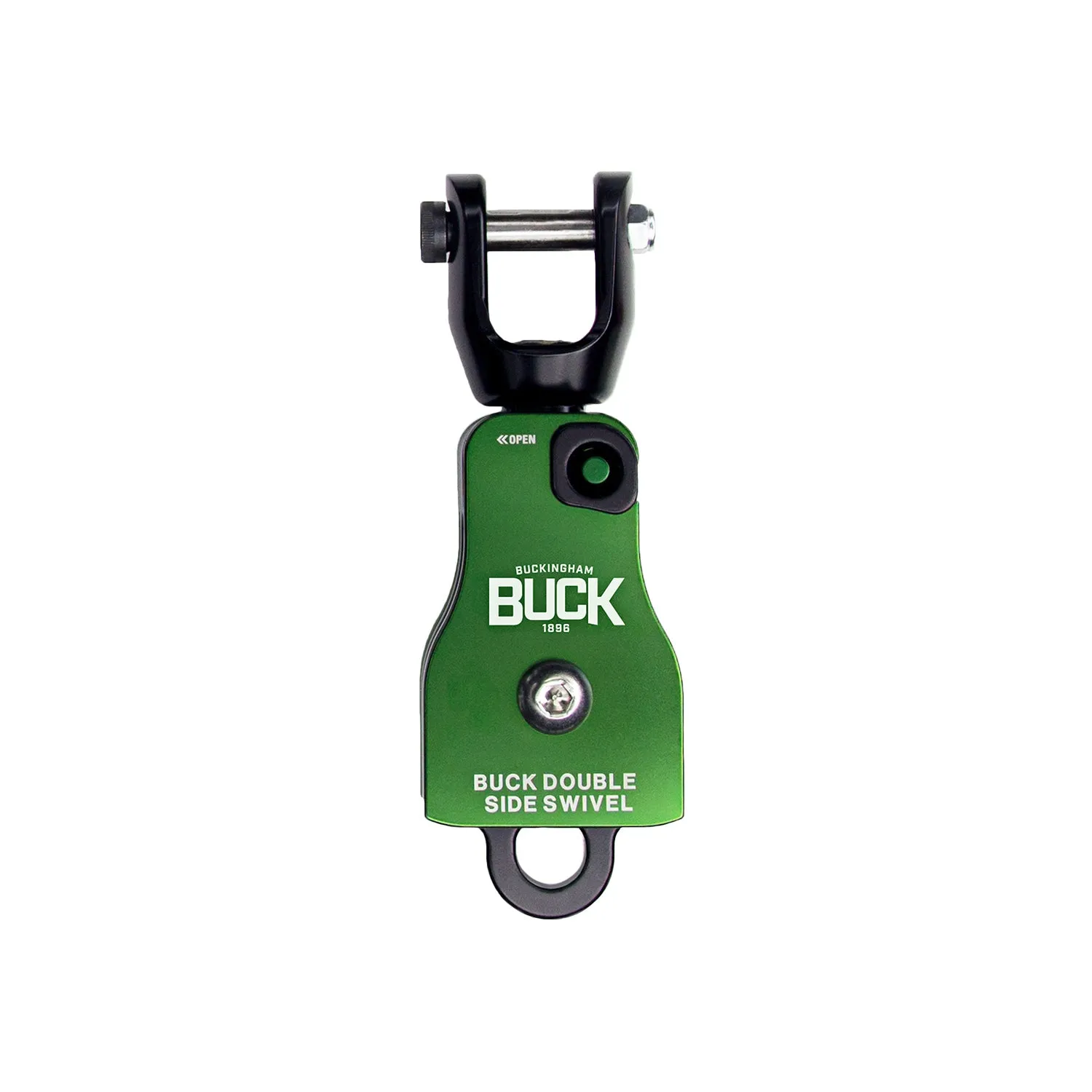

The Buck Side Swivel™ is now offered in a dual model. This heavy duty aluminum double sheave pulley has a 5/8″ diameter rope capacity with a 2500 lbf working load limit. The “Side Swivel” plate allows rope to be installed/removed without disconnecting it from the anchor point. Specially designed side plates are ideal for use with progress capture prusiks. Clevis top allows for easy change out of accessories such as slings. Ideal for building mechanical advantage with the OX BLOCK™.
Product Specifications:
| Product Number: | 50072B2 |
| Option Number: | N/A |
| Weight: | 2.6 lbs |
| Length: | 8.625" |
| Width: | 3" |
| Material: | Aluminum |
| Diameter of Eye: | Becket eye (lower eye) 0.8in. |
| Breaking Strength: | MBS 10,000 lbf 44(kn) WLL 2,500 lbf |
| Diameter Rope Capacity: | 5/8" (16mm) |
| Standards Met: | N/A |
Instructions & Warnings:
Videos:
Double Side Swivel Application ()
Ox Block™ Anchorage ()
Ox Block™ Lift & Lower ()
Compound Pulley System Training ()
Ox Block™ Progress Capture ()
